| Filling Product | Powder & Granule |
| Pouch Pattern | 4-side seal |

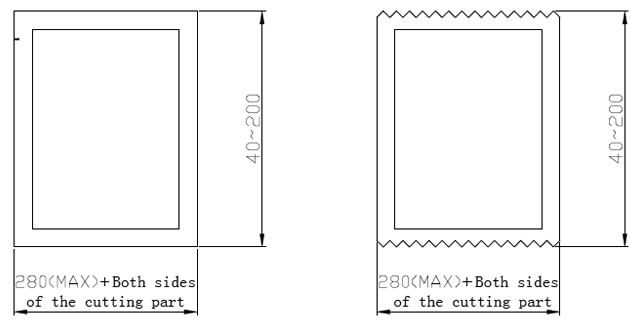

| Pouch Height Range |
2divisions
100-200mm 3divisions 80-150mm 4divisions 55-100mm 6divisions 40-60mm According to the width of horizontal sealing pouch height range is different. |
| Pouch Width | |
| Optional Item | Auger Filler/Sliding Weigher |
| Number of lanes | |
| Packaging Capacity |
30-100
pouches per minute(1-lane)×lane amount (depending on pouch height,film composition,product property,etc) |
| Filling Capacity |
1-50ml (depending on product property and filling device to be used) |
| Applicable Film Width | Maximum 1000mm |
| Maximum Film Roll Dia | ¢400mm |
| Power Consumption | 3-phase 380V 8.3kw |
| Air Consumption | 300L/min(0.4-0.5Mpa) |
| Machine Dimensions | 2200mm(L)×2065mm(W)×2540mm(H) |
| Machine Weight | Approx.1950kg |
